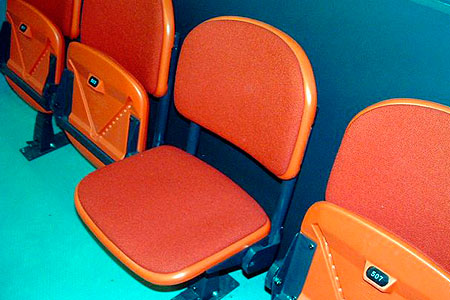

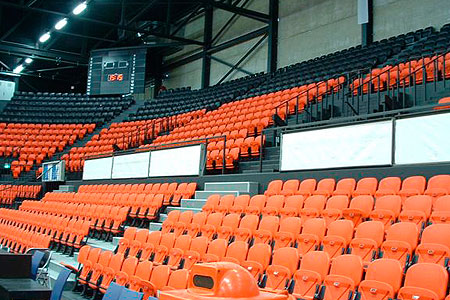

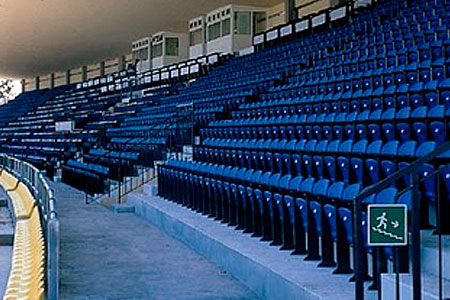

Seating system for sporting and public events.
- Sides in rectangular steel tube measuring 120 x 30 x 2 mm - feet in reinforced moulded thermoplastic or with 6 mm thick steel plate welded to the side.
- Fixed to the ground or wall with two screw anchors and bolts for each foot.
- Backrest support in steel plate welded to the side.
- Seat and backrest in blown moulded thermoplastic, in the following versions: with UV protection only, or self-extinguishing with UV ray protection.
- Seat support with rotating pins with locking mechanism; gravity fold-down system with self-lubricating rotation device in moulded reinforced thermoplastic.
- Armrest in moulded thermoplastic, secured to the side with self-tapping screws.
- Seat numbering with alphanumeric characters, in thermoplastic, slot inserted in the seat.
- Row numbering with alphanumeric characters riveted to the side.
- Writing tablet in black plastic laminate, with gravity, anti-panic fold away system.
- Side cupholder.
- Removable upholstery (with or without seat numbering slot), in fire retardant fabric, attached by velcro.
